We’ve been busy on various jobs since I last wrote, mostly trying to get some basic components built in prototype form for we can take the van on a short trip and test some things out.

Almost every design/build problem in the van is a chicken and egg problem. And we tie ourselves in knots trying to decide which part to commit to, so that we can move on. The interaction of furniture, cladding, and electrical supply is one such problem.

Since we had to start somewhere, we took the passenger side of the van as a low risk first step.

Bench bed

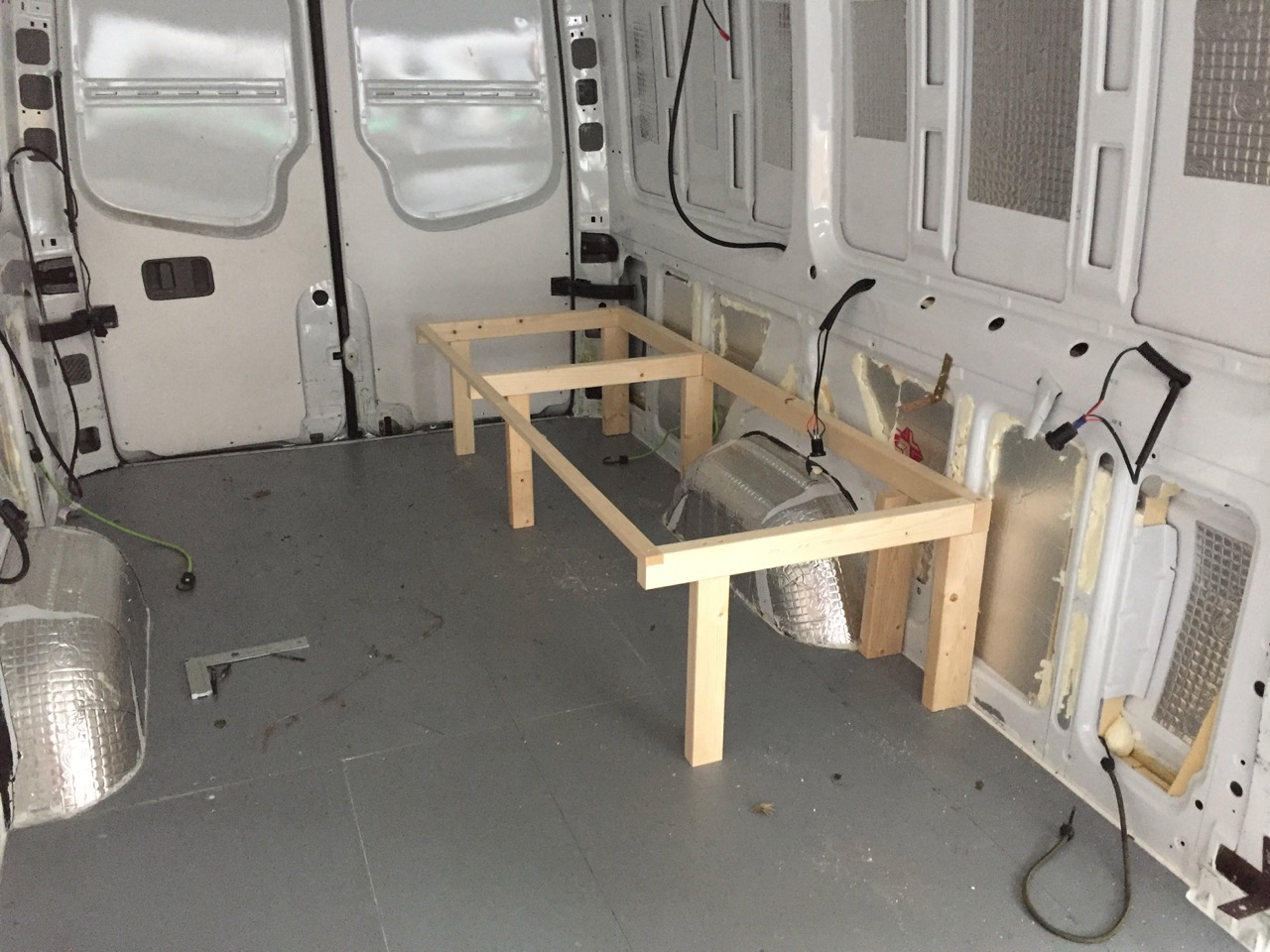

I started by building a simple bed frame. It’s mostly self supporting, with the legs nearest the wall bolted to the van body using rivnuts.

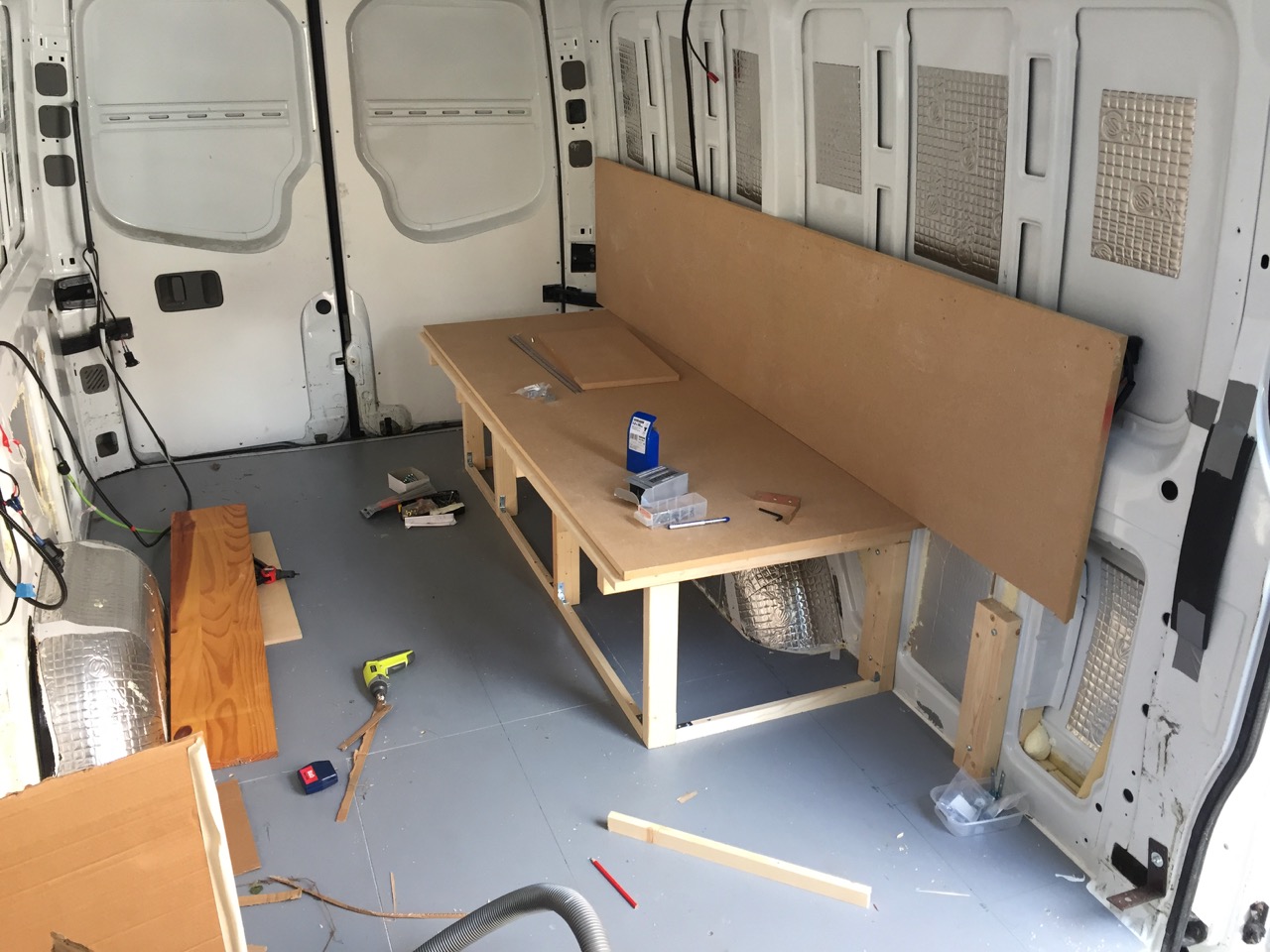

I set the frontmost legs back from he edge of the bench so that, when seated, you can swing your legs back. The front and sides will be panelled with ply, as will the top. For now, we have a piece of MDF on top to use as a test. The front edge of the bench has a 2cm lip which will form the middle (longitudinal) support for the bed. The other half of the bed will be removable, with one edgeand resting on this lip, and the far side resting on a lip on cabinets (still to be built) on the other side of the van.

Cladding

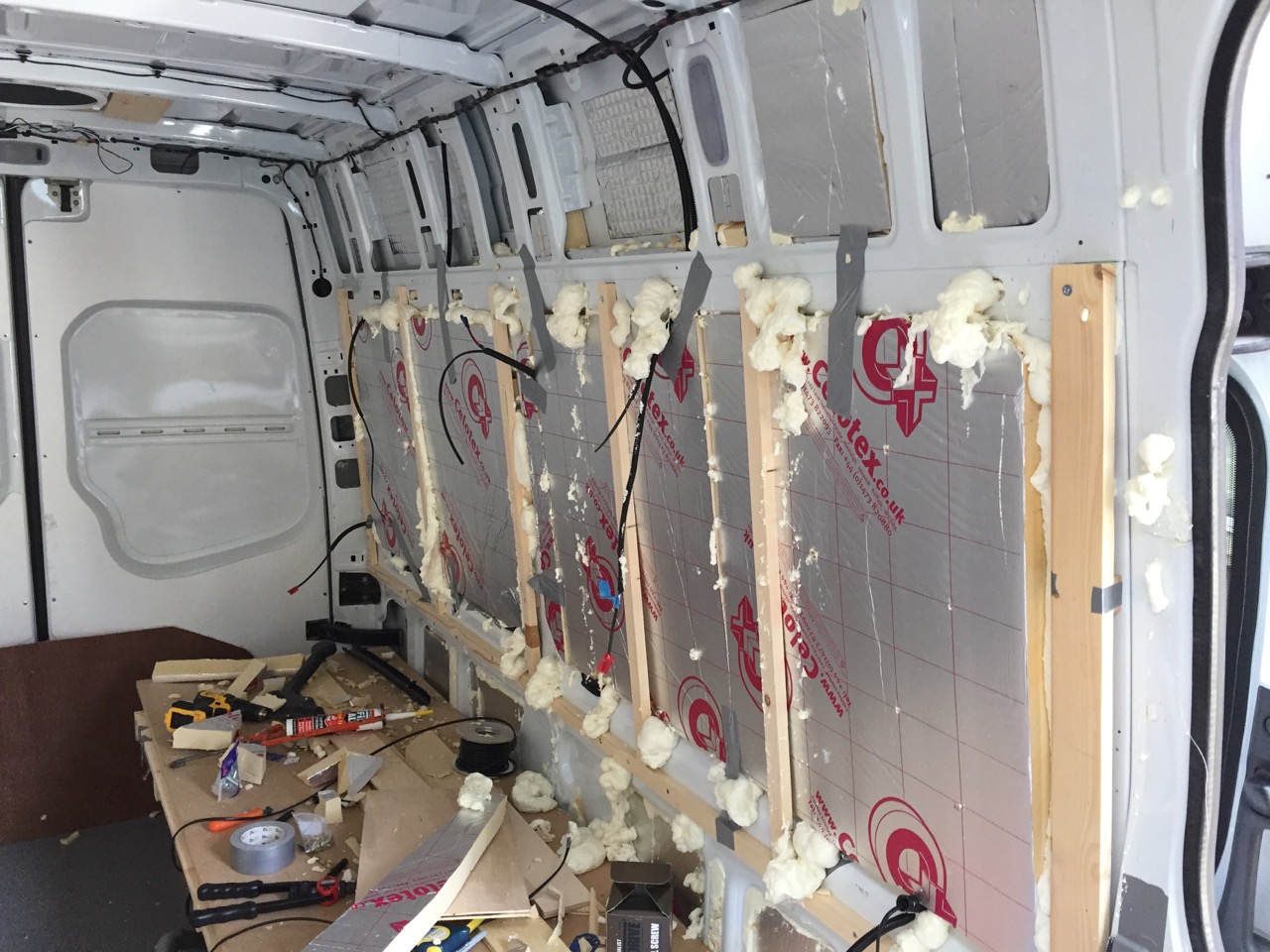

Once the bench was complete, we spent many hours figuring out how the cladding could work. The van walls are curved, and flexible plywood could conform to the curve, but there are very few places where it could be pinned back to the walls, risking it flapping around, unsupported, or ‘drumming’ when on the move. So we decided to build a flat frame for the middle section of the wall, onto which one large sheet of flat ply can be fastened.

To clad that section, we re-used some of the 5mm plywood that was in the van when we bought it , cutting out holes for the task lights and USB sockets. It feels pretty solid, so we’ll see how it works on our trip in a couple of weeks.
