2017-11-02: Gas tank – part 1

I suspect there will be many parts to this series…

After much debate, we decided to go with an externally mounted, refillable gas  tank. This one came from Gasit in the UK, and it’s about 20 litres.

The gas fittings look reasonably straightforward, given that we’ve not done this sort of thing before, but we’ve already hit our first snag, which is that the space under the chassis where this tank is designed to be mounted is slightly different to most, so the standard mounting brackets won’t fit. So we’re having some steel angles fabricated to provide secure mounting points. More on this to come.

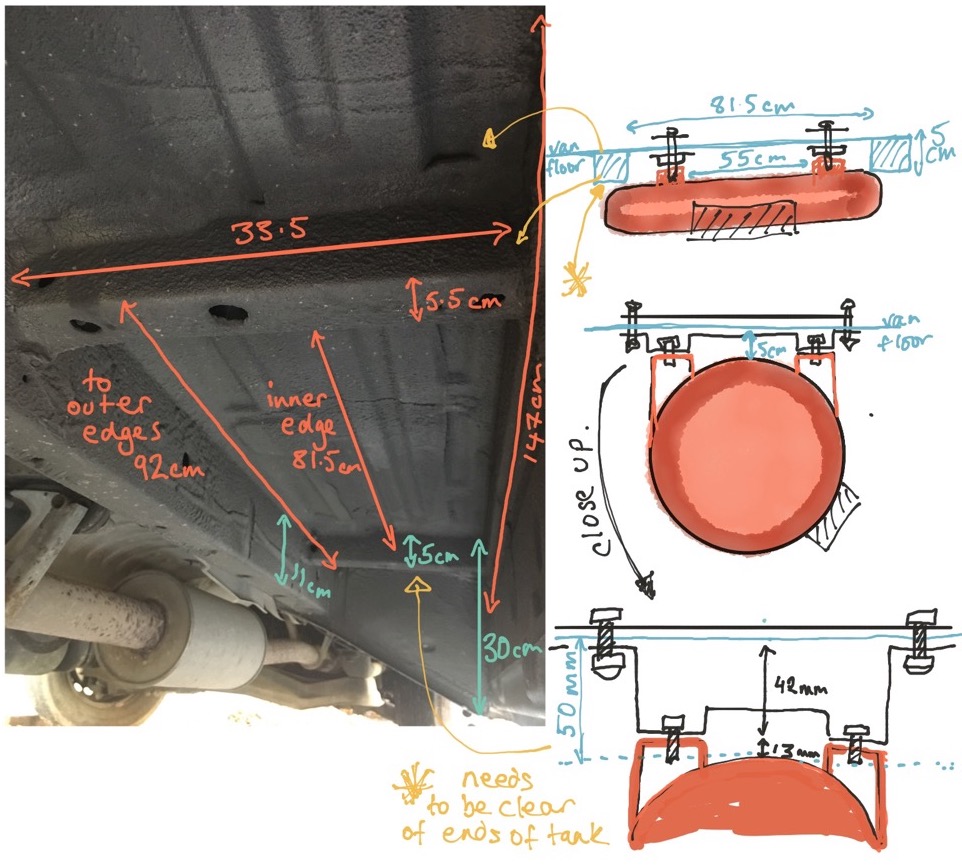

The space where we’re mounting the tank, and measurements for the custom angles we need to get made up.

In the meantime, we’re preparing the tank to be fitted, by spraying it with a coating of Underbody Seal paint, which is pretty gross stuff, but apparently should protect it from chips and dirt that’s thrown up off the road. Many more challenges on this front to come, I’m sure.

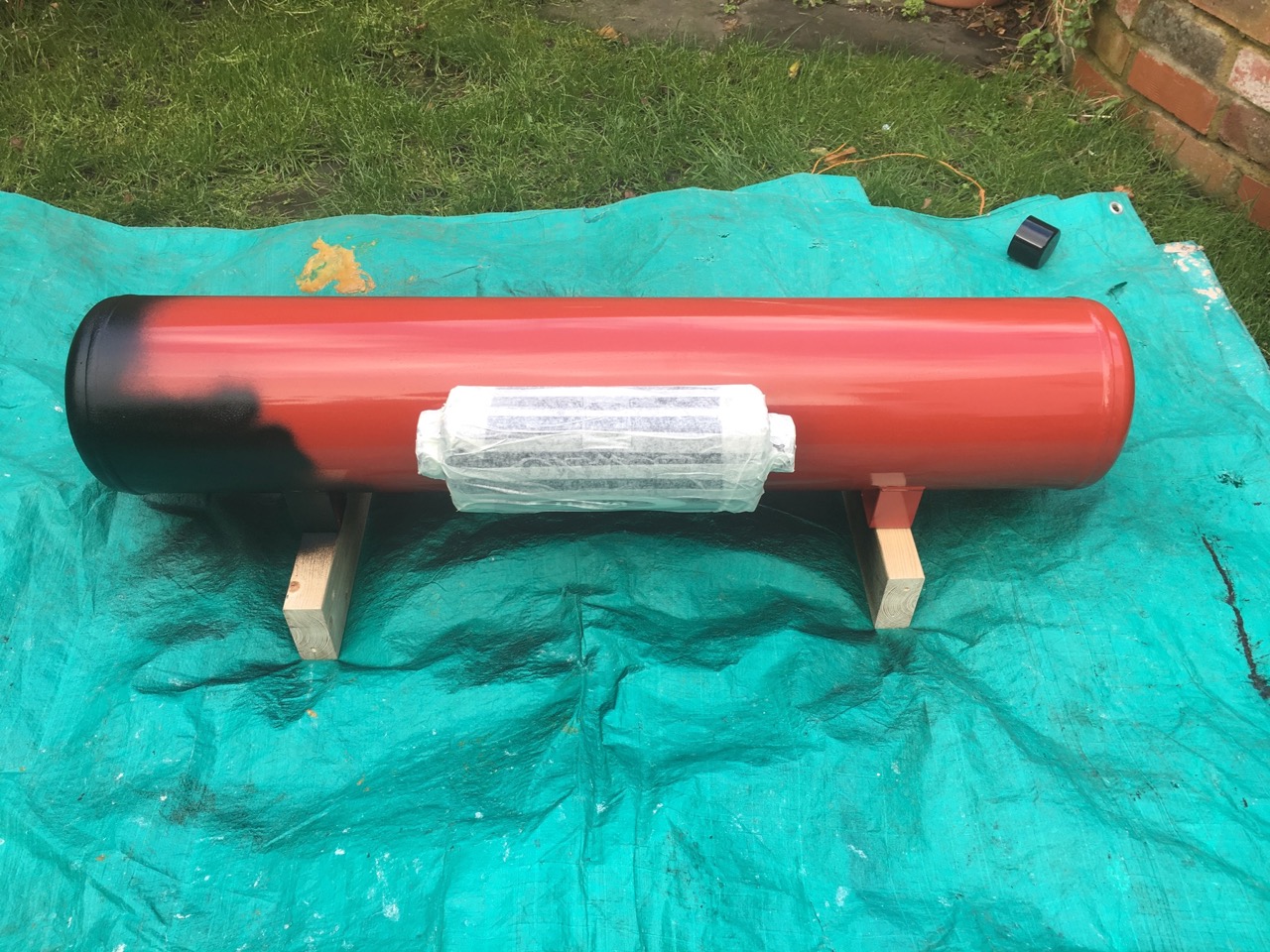

Spraying the gas tank with Underbody Seal paint

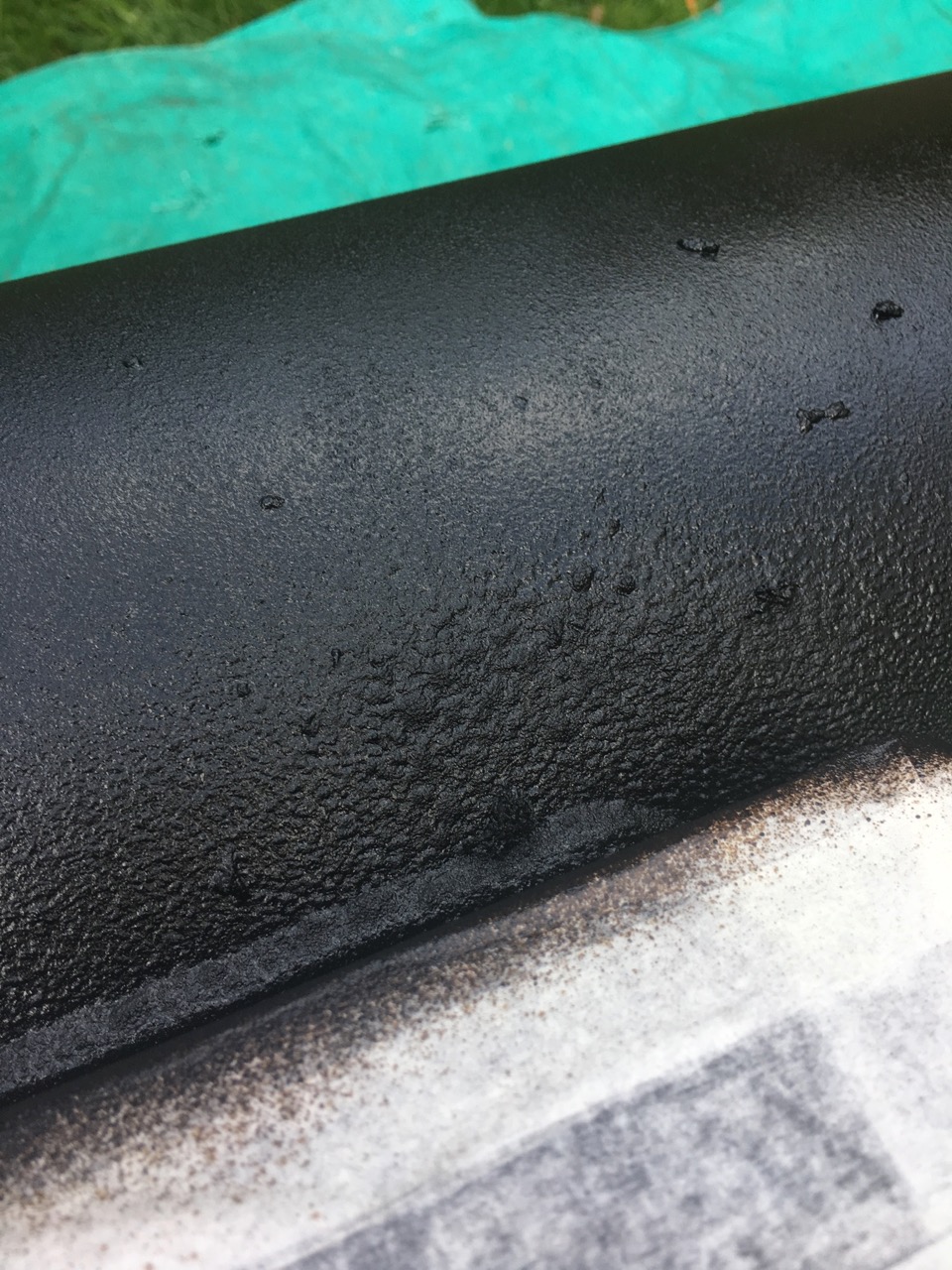

The strange tacky, textured tarry finish
